D301 is an external desktop USB input device to read 125Khz EM4100 card and send the number data to host machine,it is widely used in many application such as access control, time attendance, membership management, logistics etc

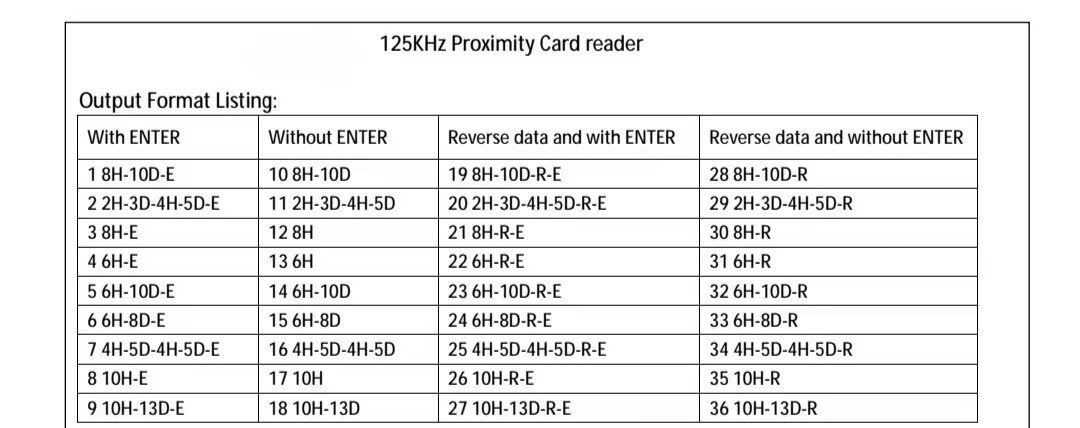

36 output format with/without enter/reverse
Emulate keyboard Qwerty/Azerty to support English,French layout (other is optional)
Buzzer disable/enable control and blue-color LED indication
Settting output by config card,no need driver
Support windows,ios pc,laptop,tablet and mobile phone
Working frequency: 125khz
Reader type: desktop reader
Reading distance: up to 8-10cm
Interface: USB
Reader Dimensions: 95 H x 61 W x 12 D (mm)
Reader Weight: 70 g
pls contact us via toni@sznewthree.com for more detaild manual info
