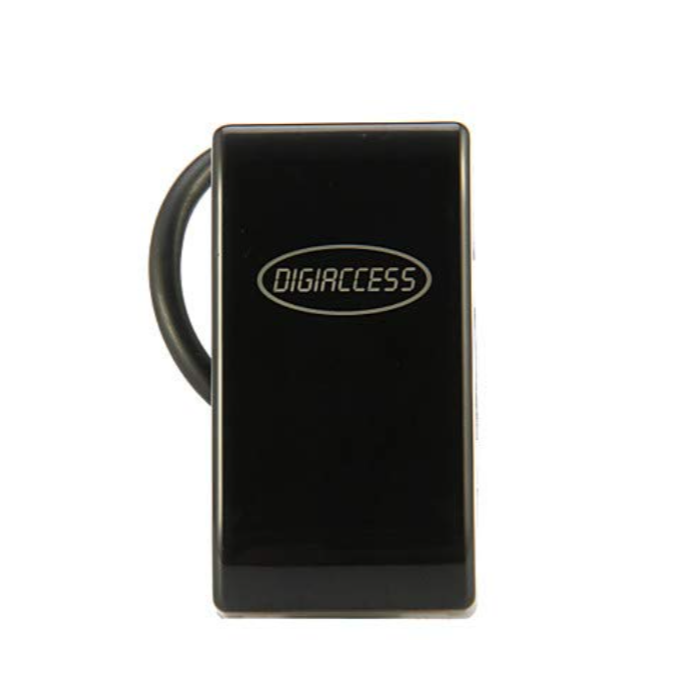

HM8005 is HID compatible 125KHz Proximity card reader, It reads all 125KHz HID cards identification
number and transmit it to access control system by using the common wiegand interface or other
interface based on client requirement
HM8005 is designed with full range protection hardware to avoid the damange from ESD or suger. Wide
range input voltage and standard wiegand interface easy to connect with the most of controller host in
the market.,LED and buzzer can be controlled from host
Key feture:double reader shell,flash blacklight shell that you can customized your company logo on it to
standout your products from the competitors
Specification
Power : 5-16VDC at 100mA
ESD protection: 2000V
Suger protetion: 1000V
Interface: Wiegand .
Reader range: upto 8 cm.
Frequency: 125KHz.
Support card: HID 125KHz proximity card.
Reader materials :Plastic
Operation temperature: -25°C --- +70°C.
Operation humidity: 5%-95% (no condensing).
Audio/Visual Indication: Green LED backlight and Buzzer signal output.
IP65 waterproof.

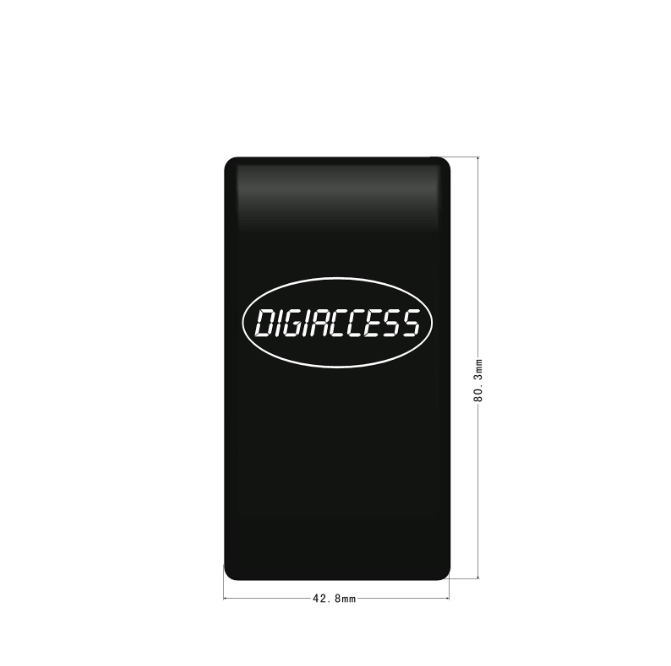

Dimension: 80 x 43 x 17mm
Weight: 100g
