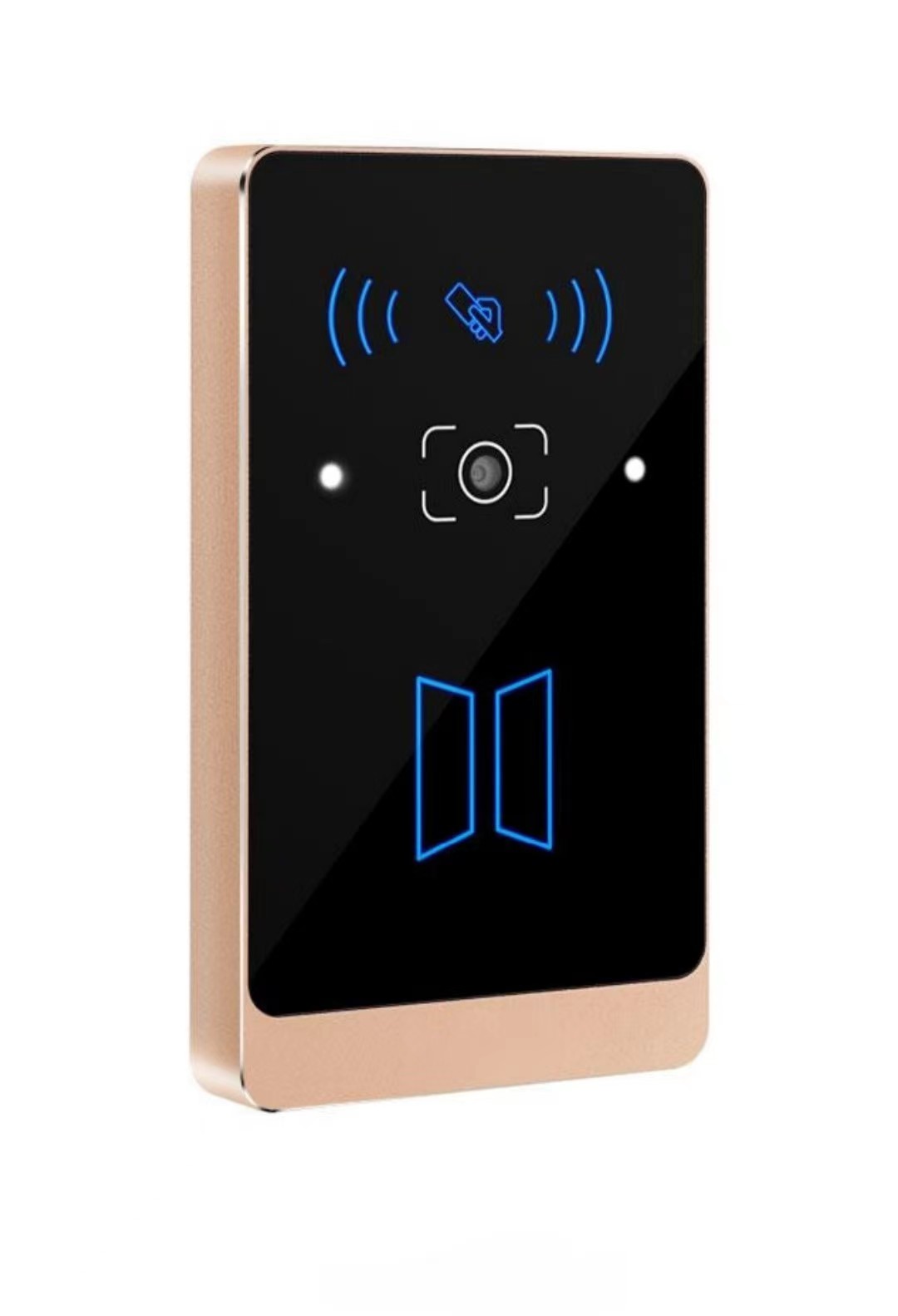

NTQ-33K is new generation of high-end sleek QR code reader .Metal grame
and H9 tempered glass panel scratch resistance and explosion-proof ,HD
camera with high recognition and scanning rate,wide scanning angle and
strong capabilities,can connect to any other brand access controller that
support wiegand/RS485 communications. Powerful processor and efficient
algorithm,decode ability can scanning 1D/2D code/barcode,like mobile,paper
and metal code etc,also it support RFID 13.56mhz IC card and keypad,wide
used for residential and commercial access projects
Key features
Metal case with H9 tempered glass to scratch resistance,explosion-proof
powerful processor with advance algorithm and decode features
full internal potting waterproof IPX7
multi-acesss QR code,RFID,keypad
Support Mobile/Paper/Metal 1D/2D code/barcode
maximum support 1024bit characters QR code
HD camera can quick recognition and scanning,wide angles
working statues indicators(backlight geen and blue two color) and buzzer
Double fill light works even in very low light conditions
Setting by configration code
Provide SDK,API for secondary development
Wiegand/RS485 interface can connect to any brand access controller
size 108*63*12mm wieght:260 gram
Customized your company logo onto it
| QR code | Model No# | NTO33 | NTO33K with keypad |
| Identification Methods | QR Code,RFID, keypad | QR Code,RFID | |
| Output interface | Wiegand26/34,RS485 | ||
| Processor chips Frequency | 1GB Hz | ||
| Operation system | Embedded Linux | ||
| Products size /Wieght | 108*63*12mm 280gram | ||
| Materials | Aluminium alloy +H9 tempered glass | ||
| Camera resolution | Pixel 640*480 30FPS | ||
| Identification 2D code types | QR code, PDF417,Data matrix MicroPDF417 Aztec | ||
| Identification 1D code types | UPC-A , UPC E, UPC E1, EAN 8, EAN 13,EAN 14, EAN 128,UCC128, ISBN/ISSN,CODE11, CODE32, CODE39, CODE39 FullASCII, CODE93, CODE128 | ||
| Identification accuracy | ≥7mil | ||
| Identification speed | 80ms | ||
| Camera view angle | Horizontal 80 degree, Vertical 51 degree, Diagonal 88 degree | ||
| Scanning angle | Rotate 360 ° , forward/backward 40 ° , left/right 40 ° | ||
| Identification distance | 5-20cm | ||
| QR code Support | Wiegand26 support range 0-255 , 1-65535, Wiegand34 support range 14294967295, RS485 support range 1024 characters | ||
| RFID | Support card/tag | 13.56mhz ISO1443A/ISO1443B card/tag | |
| Reading Distance | 5-8cm | ||
| Working voltage | DC 9-15V at 150mA | ||
