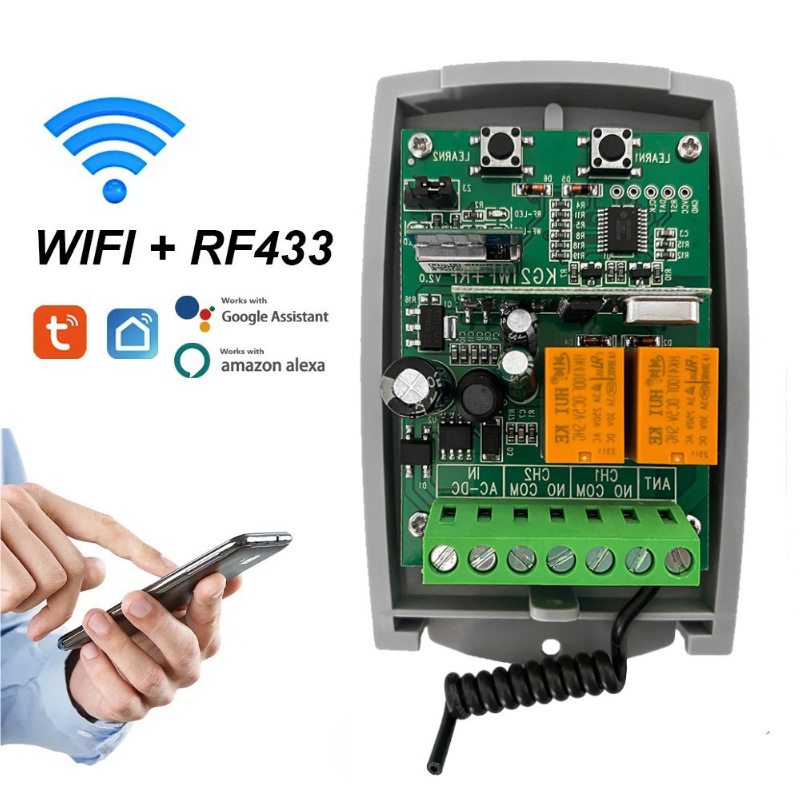

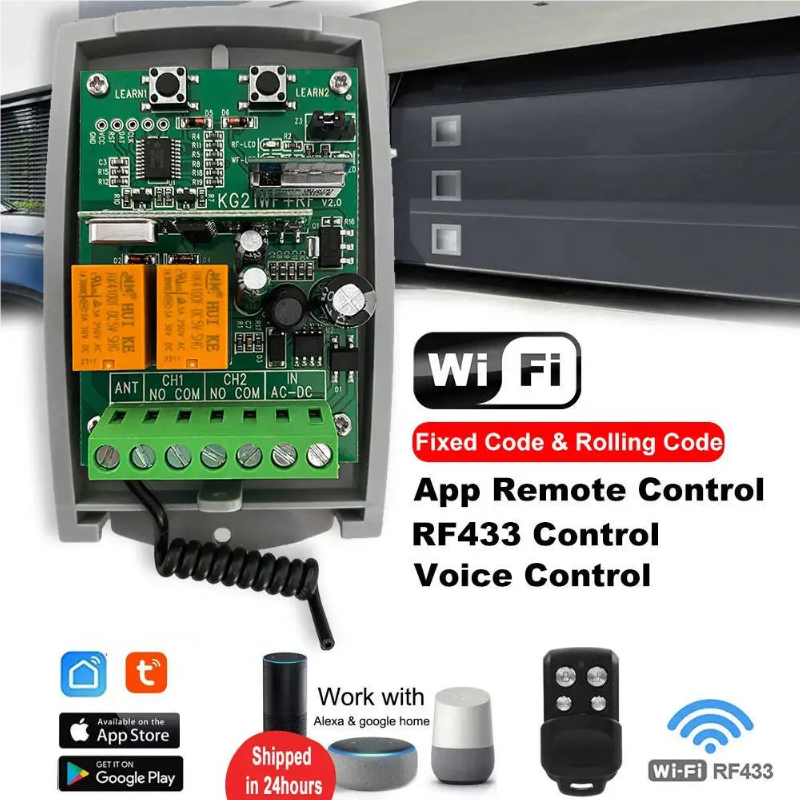

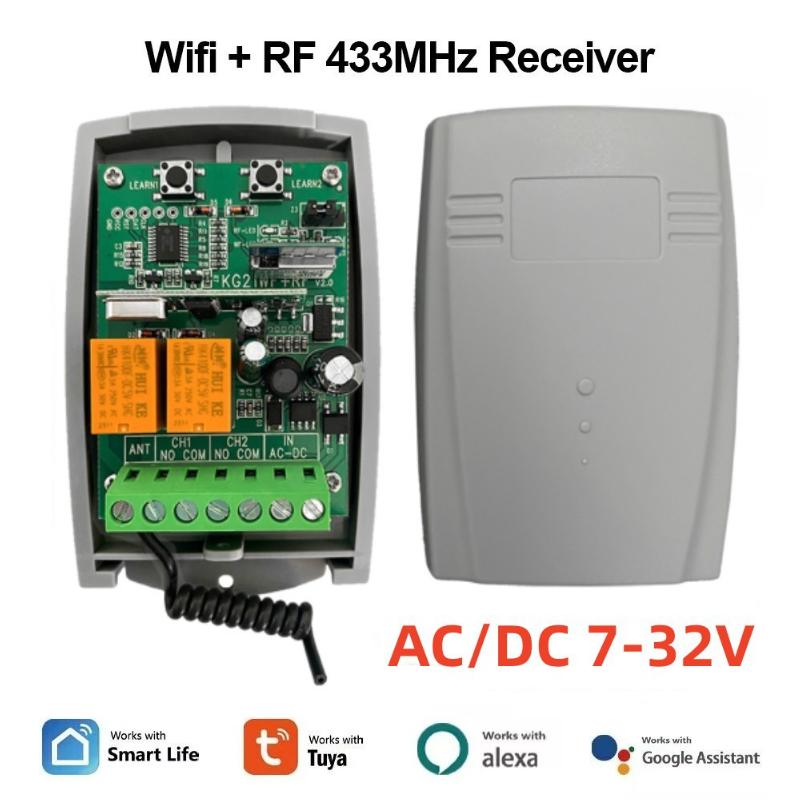

About BR01 WIFI+RF receiver

1.Powerful receiver: This smart switch can make your garage / door / gate / light easy to control. After connecting with your device, you can use Phone + Voice + RF to control it;

2.Dry contact and wide working voltage support: DC / AC 12-24V are all ok. (12v 24v support)

3.Work with many brands such as DITEC/DOORHAN/Aprimatic/Avidsen etc

4.Work with multi codes such as rolling code (HCS 301), learning code(EV1527) and fix code(PT2262)

5.Timing module: You can set up a schedule on your phone.It has countdown function too

6.Multi control: Usually work with 30pcs RF remotes. We can also custom more for you

Parameters:

Input voltage：DC/AC 12V~24V

Radio Frequency:433Mhz 433.92MHz

Codes: Working with any fixed and rolling code remote control

Working temperature: -20℃~70℃

Programming: press and hold the learn button on the receiver few seconds. Then hold and press

the remote control button to programming.

Delete code: Press and hold the delete code about 20 seconds.

Checklist before using the device

Your smart phone or tablet has connected to a2.4g WiFi with internet.

You need to enable Bluetooth of the phone.You have the correct WiFi PWD.

You have the correct WiFi PWD.

You smart phone or tablet must have access to APPstore,Google play.

Your router is MAC-open

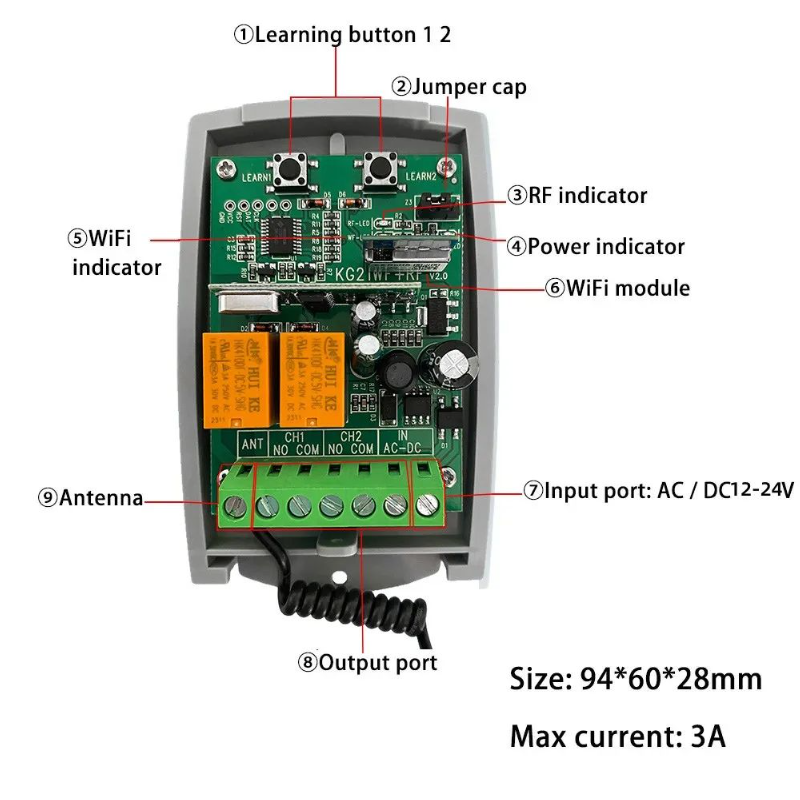

Product details

1. Learning button 1 2

2.Jumper cap

3. RF indicator

4. Power indicator

5. WiFi indicator

6. WiFi module

7. Input port: AC / DC 12-24V

8. Output port

9. Antenna

Products advantage

1,APP control, just click on the Tuya or Smart Life APP to open the door anytime, anywhere.

2,Timer,Set a countdown timer to automatically close 1 minute after opening the door

3,Hands-free voice control，Compatible with Alexa and Google Home, voice control of door opening and closing.

4,Share Control，Share control of your home appliances to your family or friends so that they can also control the devices remotely

5,3 Working Modes，Self-locking, inching mode

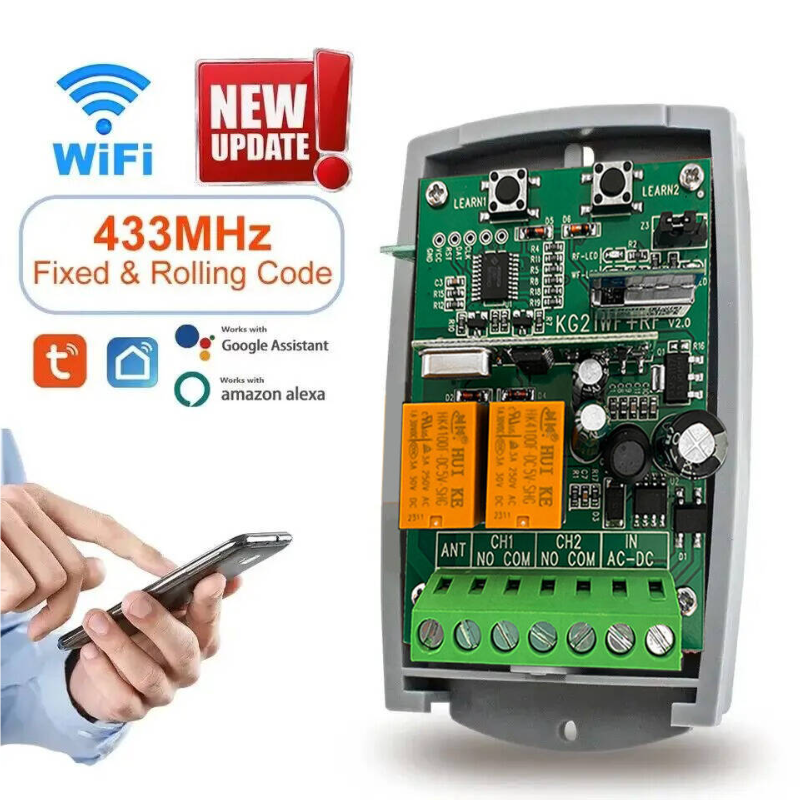

6，Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

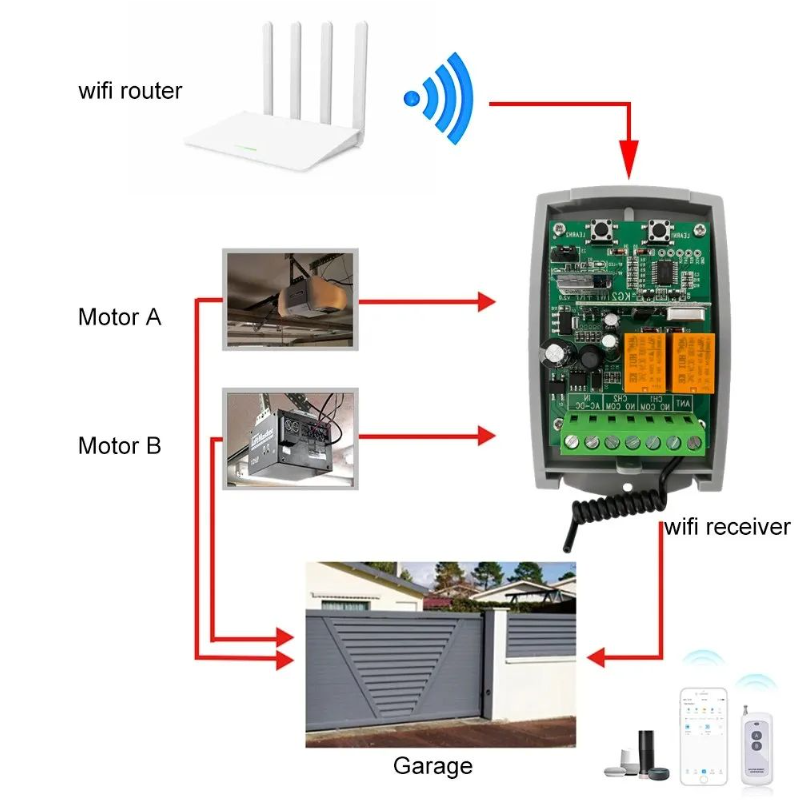

7，2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

8,The maximum number of remote controllers stored is 400, which is enough for the entire community to use.

9，It's very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support - i'm always at your service!

10,The product is a general smart receiver and it can be matched with the majority of the wireless receiver in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code （HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc） and a part of customized remote controller

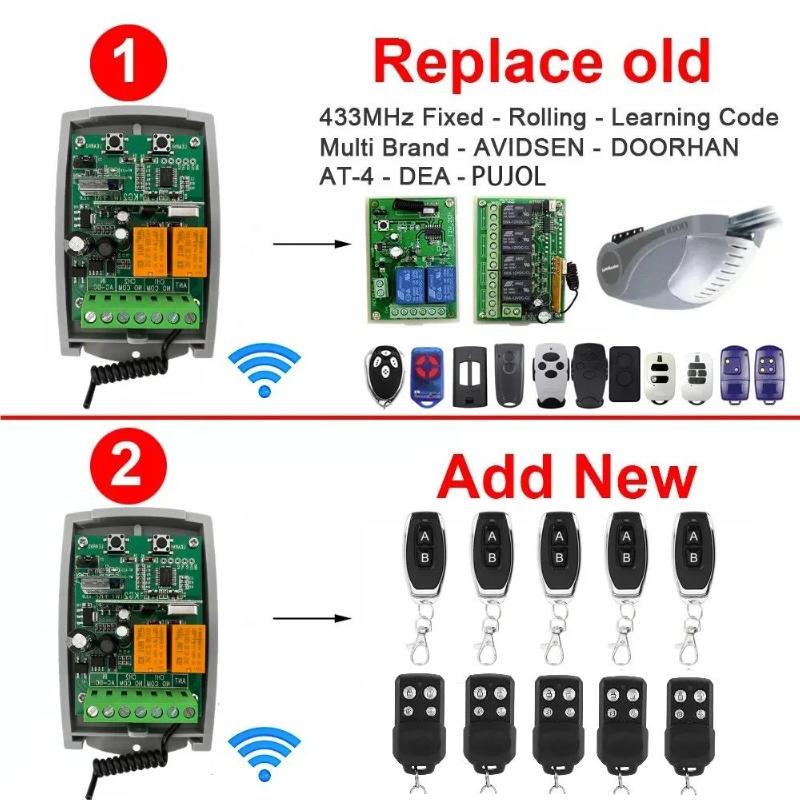

Replace old, add new

You can use it to replace your old receiver, or add our remote control to use

App Remote Control

Control your garage door opening and closing from any location with the Tuya/Smart Life App

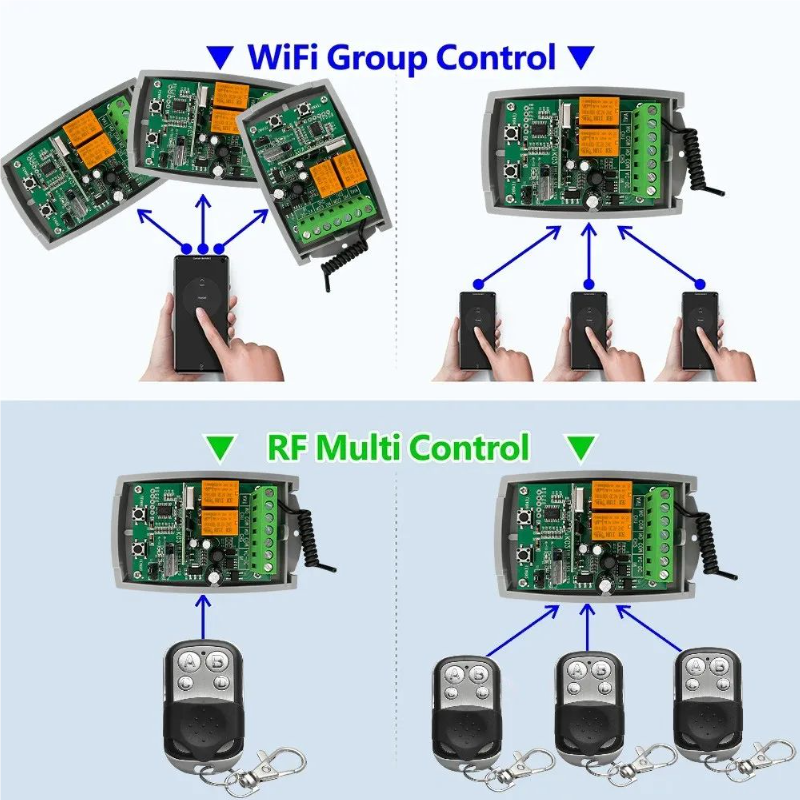

RF Control

Compatible with fixed code, scrolling code, learning code 433MHz RF remote control, the remote control can still work normally after wifi is disconnected

Voice Control

Open your door using Alexa or Google Home voice control. Free your hands

Family Staff Sharing

Once you're connected, you can share the device directly with your family members without having to pair it again!

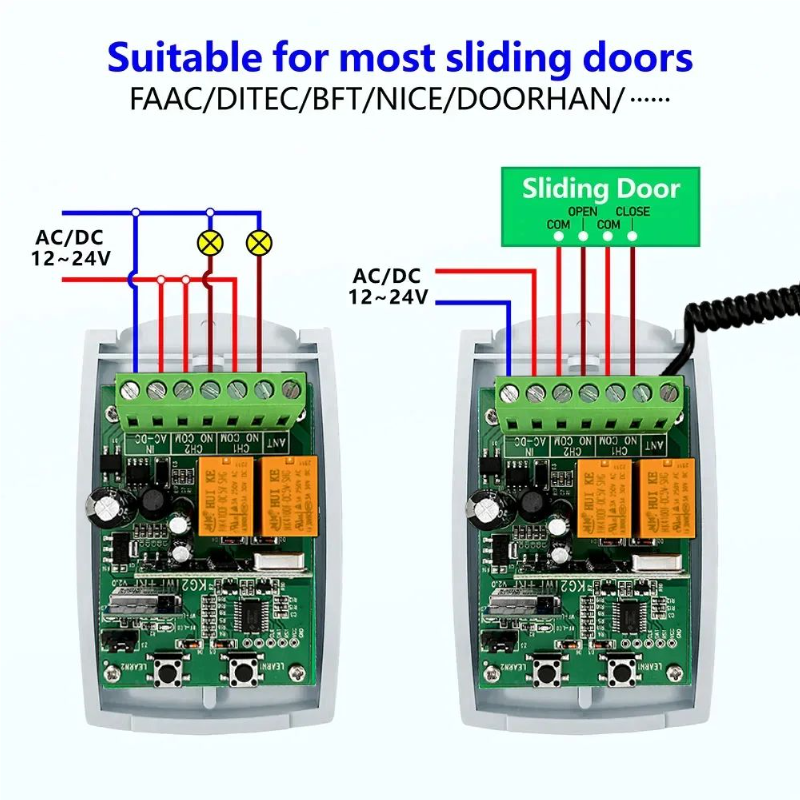

How to connect with power

The input power can be DC / AC 12-24V . You can connect with garage control system and lights

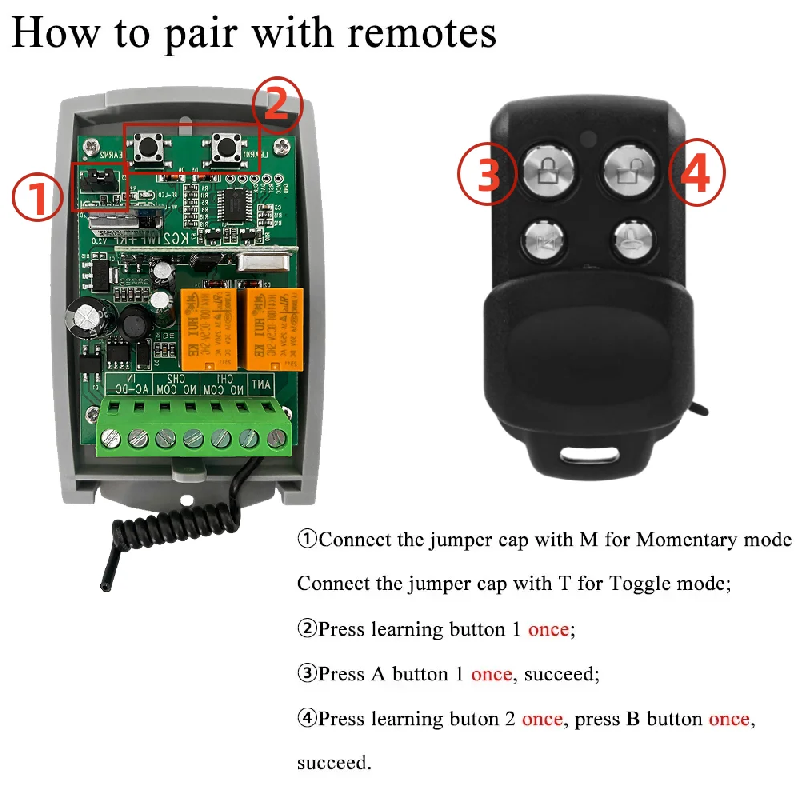

How to add RF remote

1. There are two working modes for this switch. You need to select one mode before pairing with remotes:

1.1 Momentary mode : Connect the jumper cap with M on the board.

It works like this : Press and hold A button, 1st channel work, release A button, 1st channel stop. B button and 2nd channel work same

1.2 Toggle mode : Connect the jumper cap with T on the board.

It works like this : Press A button, 1st channel work, press A button again, 1st channel stop. B button and 2nd channel work same

2. After connect with T or M, press learning button 1 once ;

3.Press A button once, succeed. A button can control 1st channel ;

4.Press leanring button 2 once, press B button once, succeed. B button can control 2nd channel
