Mode No: NTF003

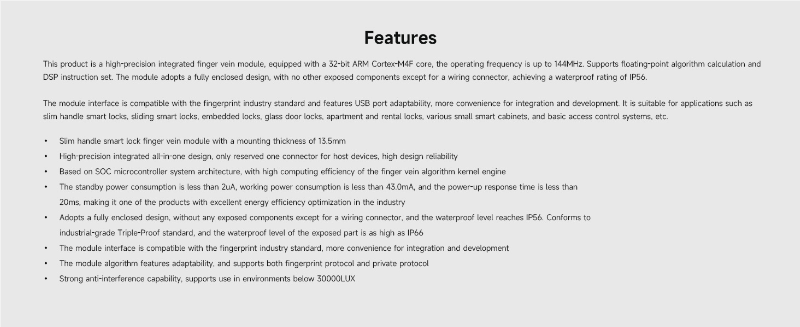

This product is a high-precision integrated finger vein module, equipped with a 32-bit ARM Cortex-M4F core, the operating frequency is

up to 144MHz. Supports floating-point algorithm calculation and DSP instruction set. The module adopts a fully enclosed design, with

no other exposed components except for a wiring connector, achieving a waterproof rating of IP56

The module interface is compatible with the fingerprint industry standard and features USB port adaptability, more convenience for

integration and development. It is suitable for applications such as slim handle smart locks, sliding smart locks, embedded locks,

glass door locks, apartment and rental locks, various small smart cabinets, and basic access control systems, etc

High-precision integrated all-in-one design, only reserved one connector for host devices, high design reliability. Based on SOC

manti-interference capability, supports use in environments below 30000LUX

Slim handle smart lock finger vein module with a mounting thickness of 13.5mm. The standby power consumption is less than 2uA,

working power consumption is less than 43.0mA, and the power-up response time is less than 20ms, making it one of the products

with excellent energy efficiency optimization in the industry

Adopts a fully enclosed design, without any exposed components except for a wiring connector, and the waterproof level reaches

IP56. Conforms to industrial-grade Triple-Proof standard, and the waterproof level of the exposed part is as high as IP66. The

module interface is compatible with the fingerprint industry standard, more convenience for integration and development.

The module algorithm features adaptability, and supports both fingerprint protocol and private protocol
