Feature:

Communication:TCP/IP(Wiegand)

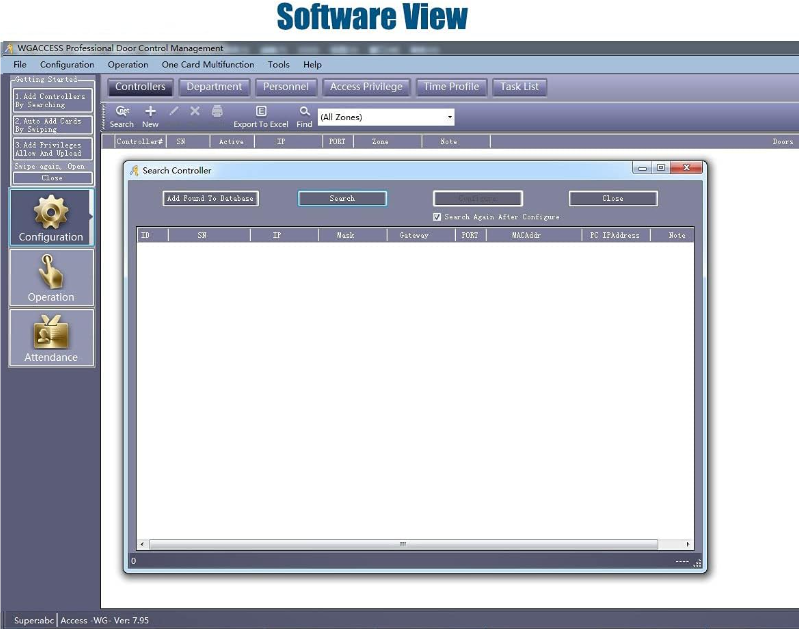

English Software supportable database:Access or SQL Server

Description Control:4/2/1 doors, get in by swiping card, get out door by button

Power Supply:12VDC;4-7A

Power Consumption of Circuit Board Less than 100mA

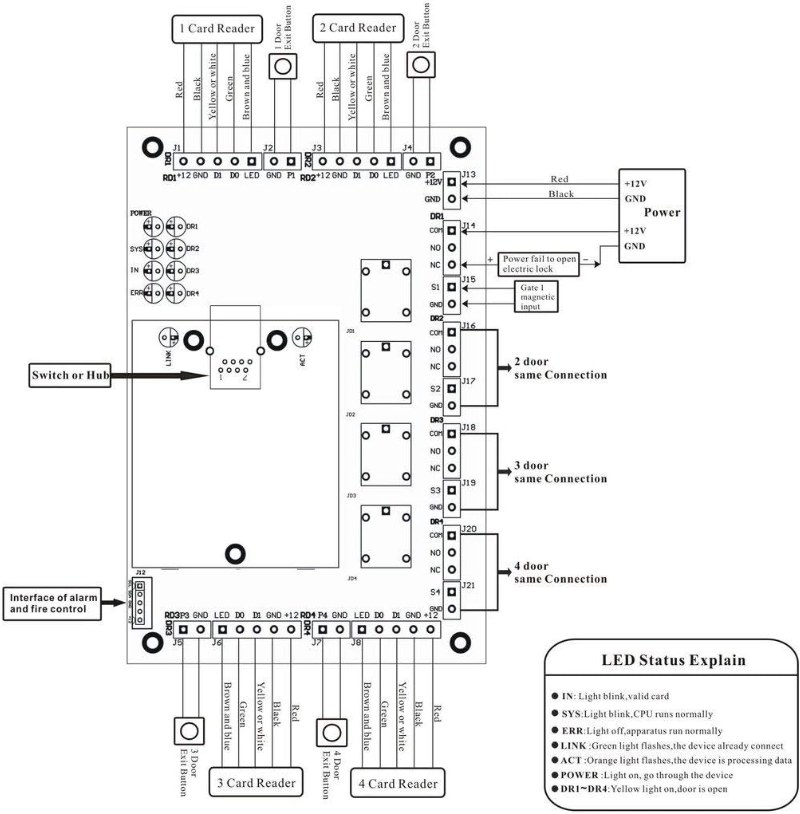

Input Format of Reader: Wiegand 26/Wiegand34 (All card reader with compatible protocol, RFID/Mifare/HID)

Quantity of Readers:4/2 pcs to Support

Door Controlled:4,2,1 doors control to Support

Door opening time extending setting:1-600 Seconds(adjustable)

Max quantity of controller:Unlimited

Operation Temperature:-40C-70C

Operation Humidity:10-90 % RH , No Condensation

User Capacity :20,000 Users

Log Capacity:100,000 event buffers

Dimension approx. 16(W)x10.6(H)mm

Sepecification:

Door Opening Time Extending: Setting: 1~600 seconds (adjustable)

Max Quantity of Controller: Unlimited (Remark: N denotes q'ty of computer serial port or q'ty of 485hub port, support 256pcs ports)

Quantity of Users: 20,000 users

Quantity of Event Buffers (offline): 100,000 event buffers

Max Distance from Reader to Controller: 100m/328ft (suggestion distance 80m/262ft)

Collocations: PCB board,case,power,power line,erial port communication line,software,manual,certificate,key(2pcs),carton

Alarm for Long Time Door Open, Unlawful Entry, Intimidate

Fire and alarm linkage: If no connection with the expansion board, only has software interface alarm, and drive the computer speaker. If connected with expansion board, is able to alarm by hardware, if connected with strengthened expansion board, then is able to Security alarm

Compulsive open and close door at long time: Yes

Open door in remote distance: Yes

Inter block: Yes

Anti pass back and tail: Yes

Multi card open door: Yes

Open long time at specified time: Yes

Urgency locking: Yes
