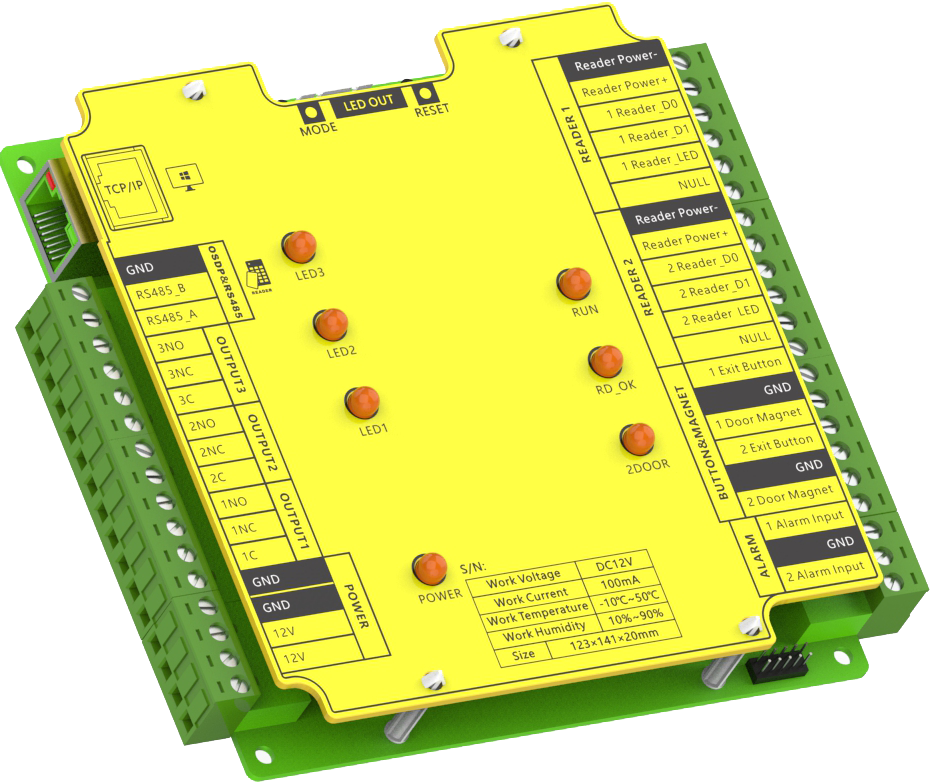

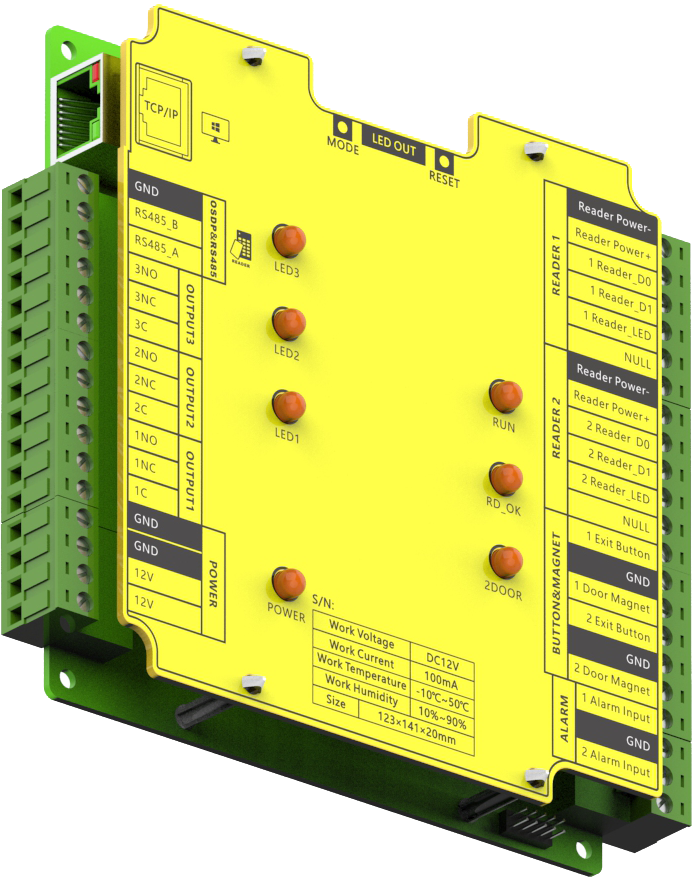

DPU3022 TCP/IPRS485 OSDP V2 two door control board

  • Charger-M
  • Charger-M
  • Charger-M
  • Charger-M
Charger-M Charger-M Charger-M Charger-M

DPU3022 is a new version OSDP V2 TP/IP RS485 control board,with high

performance ARM cpu and big storage,provides advanced security features and

enhanced functionality ,It support bidirectional encrypted AES 128 communication,

double authentication,ACKs/NAKS,many OSDP profiles,tamper detection and

reporting,remote control and firmware upgrate,global anti-passback and

multi-door interlock,it can conenct any wiegand/RS485/OSDP readers or other

video,fingerprint,facia recognition device,more widely compatible with existing

hardware and access control systems






修改尺寸 (1).jpeg

修改尺寸 (2).jpeg

修改尺寸 (3).jpeg
