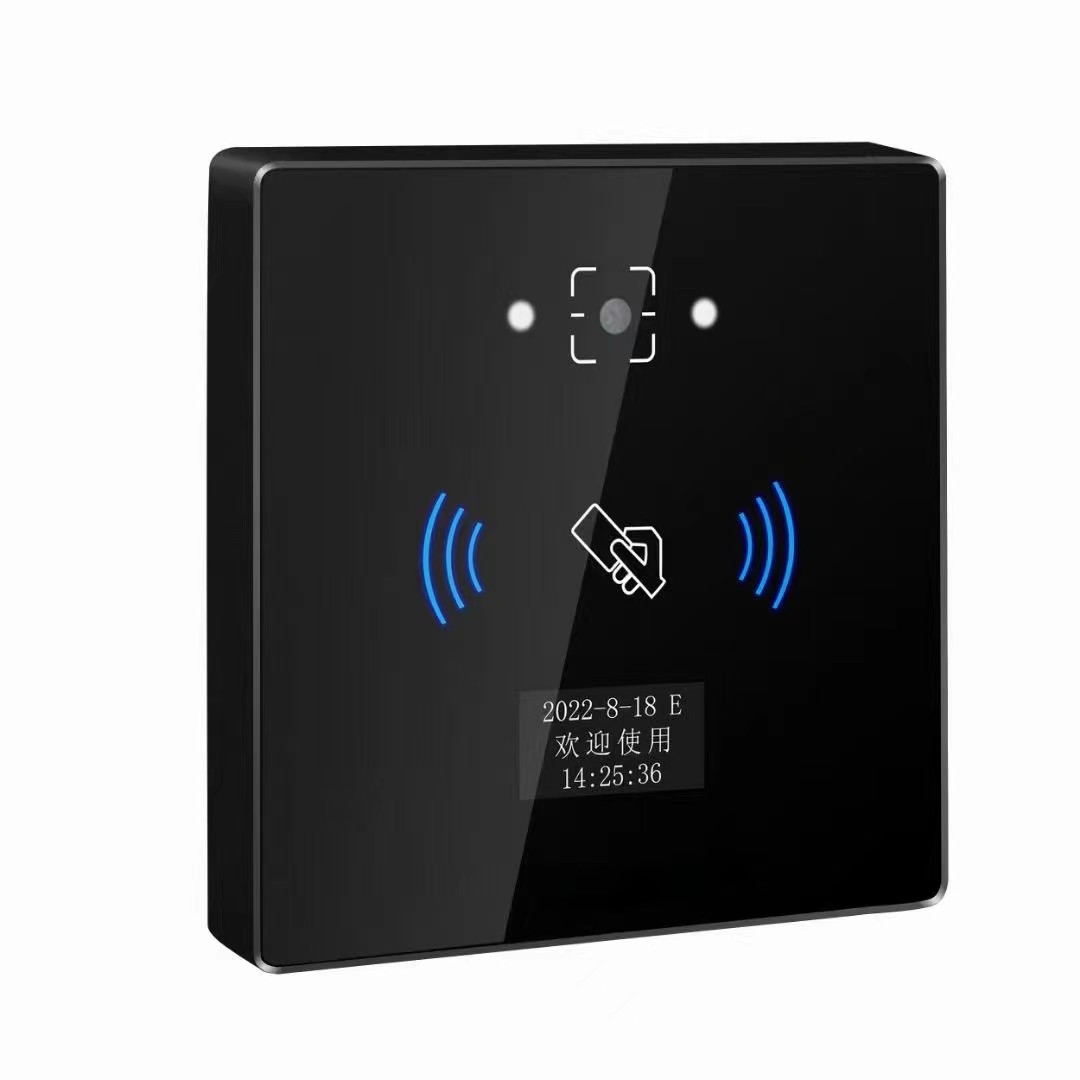

NTQ26 WIFI+BLE+QR code+RFID+keypad multi-technology standalone access controller

INQUIRY EMAIL

NTQ26 is new generation high-performance standalone access controller to support
cloud/Remote management with 5 in 1 authentication options comprised of WIFI,
Bluetooth,QRcode and RFID&keypad password to access.It adopts powerful CPU
and chips,more statble and fast decode during a long time running.It provide SDK
software (support http/https/MQTT protocol to secondary developmen,Full
interface and fuctions,HD camera fast scanning speed,more applied in esidential
and commercial access projects

Peducts features
Powerful processor with advance algorithm and decode features
ABS frame+H9 tempered glass scratch resistance,explosion-proof

0.96 feet OLED display support English
full internal potting waterproof IPX7
big storage support 200000 users
multi-acesss wifi,QR code,bluetooth,RFID,keypad
two way input for Gate magnets button，one way infrared anti-dismantling
alarm induction output，one way relay ouput
maximum support 1024bit characters QR code
HD camera can quick recognition and scanning,wide angles
working statues indicators(backlight geen and blue two color) and buzzer
Double fill light works even in very low light conditions
Wiegand/RS485 interface
Easy installation and operation
size 86*86*16mm wieght:200 gram
Customized your company logo onto it

Model No#	NTO26	NTO26K with keypad
Identification Methods	WIFI,BLE,QR Code,RFID,keypad	WIFI,BLE,QR Code, RFID,keypad
Output interface	Wiegand26/34,RS485
Processor chips	X1021 (XBurst 800MHz)
Operation system	Embedded Linux
Bluetooth	4.0 BLE
Storage capacity	offline users (Code 100000 users,IC card 100000 users),offline records 100000
Communication procotol	support http,https,MQTT
Display	0.96 feet OLED display support English
Storage memory	128M flash
Anti-demolition alarm	support alarm signal output to host in real time
Products size /Wieght	1086312mm 280gram
Support QR code types	QR code,Data Matrix
Materials	Aluminium alloy +H9 tempered glass
Camera resolution	Pixel 640*480 30FPS
Identification accuracy	≥7mil
Identification speed	80ms
Camera view angle	Horizontal 80 degree, Vertical 51 degree, Diagonal 88 degree
Scanning angle	Rotate 360 ° , forward/backward 40 ° , left/right 40 °
Identification distance	5-20cm
QRcode Support scope	Wiegand26 support range 0-255 , 1-65535, Wiegand34 support range 14294967295, RS485 support range 1024 characters
Support RFID card/tag	13.56mhz ISO1443A/ISO1443B card/tag
Reading Distance	5-8cm
Working voltage	DC 6-25V at 150mA
